The SCA-814 Linear Servo Controller was specifically designed to control single phase, non-comutated devices like voice coil motors. It is a high performance single axis DC motor controller and amplifier system. It is comprised of a highly integrated single PC board level product with a cohesive interface and a compact heat sink. This card provides current amplification and analog servo control interfaces. The single-phase characteristic of the very low noise current amplifier makes it particularly well suited for DC motors such as galvanometers and voice coils. It was specifically developed for control of motor applications requiring both high temporal and spatial servo precision, such as machine vision, inspection, scientific imaging, medical imaging and other business applications. This amplifier interfaces directly to most of the Equipment Solutions motor/stage solutions.
A bipolar linear or switching regulated power supply is required to operate the SCA814 amplifier. Typically better performance can be achieved when using a linear power supply. Equipment Solutions has several high-current supplies for this purpose including the SPS-15 ±15V DC Switching Power Supply.
Specifications
| Servo Control Law: | Tunable PID, and Slew Rate |
| Closed Loop Bandwidth: | 100- 1000 Hz, 500 Hz Typical |
| Command Input: | RS232 SPI, +/- 2.5V DC |
| Sensor Feedback: | Analog |
| Position DAC: | 16 Bit DAC |
| Profile Generator: | Arbitrary 64 point | Unlimited Linear |
| Current output: | Linear, 8A |
| Safety Protection: | Over Temp, Current, Position |
| Input Voltage: | +/-15V DC Standard |
| Communication: | RS232C Standard |
| Operating Temperature: | 0° C – 50°C |
| Size: | 3.0 X 3.0 X 1.0 in. | 76 X 76 25mm |
| Weight: | 6 oz. | 165g |
Downloads & Data Charts
SCA814 Servo Controlled Amplifier Data Sheet – Provides a brief presentation of the products features and specifications.
SCA814 Servo Controlled Amplifier Manual – Details information on the setup and operation including servo tuning processes.

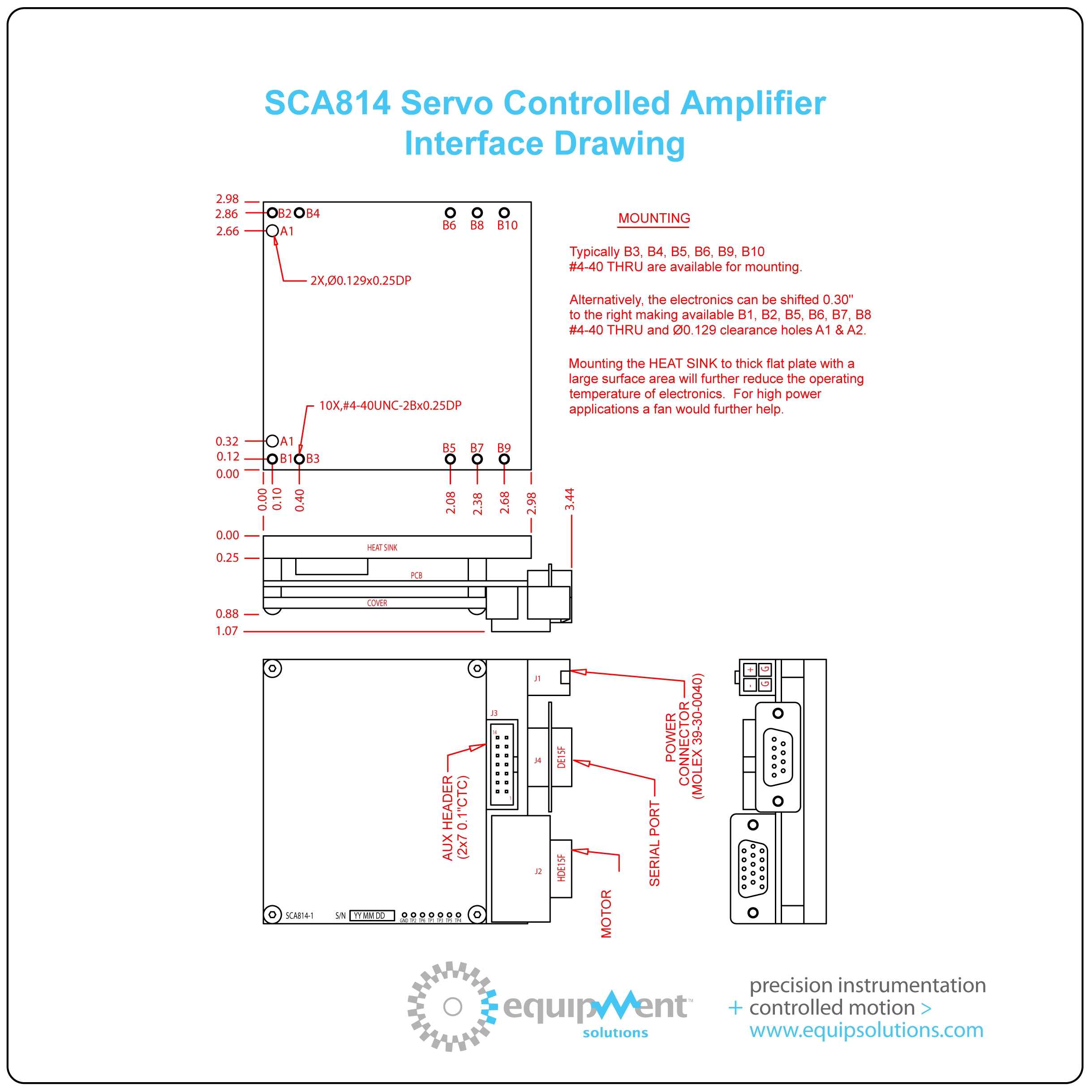

SCA814 Servo Controlled Amplifier Interface Drawing and Diagram – Presents the mechanical details necessary for integration of the product.
SCA814 Firmware Change Log – Provides detailed information related to firmware updates and their operational affects.
SCA814 SolidWorks 3D Model – Downloadable .zip file.
